| System |
CPU
|
Socket 479 Intel Pentium-M / Celeron-M (Dothan) |
| Chipset |
Intel 855GME + ICH4 |
| BIOS |
4Mb AMI Flash BIOS |
| Cache |
Built-in CPU L1 & L2 cache |
| VGA |
855GME integrated Extreme Graphics |
| Audio |
Realtek ALC202 AC97 Audio Codec, optional 2+2 watts power amplifier |
| LAN |
ICH4 + 86562ET PHY 10/100Base-T Ethernet |
| Memory |
DDR 266/333 SODIMM x 1 (without ECC) |
| I/O |
ICH4 |
| IDE |
UDMA 100 IDE interface x 2 |
| GPIO |
8-bit input, 8-bit output (5V) |
| WDT |
1~255 seconds, software programmable |
| Display & Touch |
Panel
|
17" 24-bit dual-channel LVDS TFT LCD (300nits) |
| Chipset |
855GME |
| Memory |
Shared system memory up to 64MB |
| Resolution |
1024 x 768 |
| Touch Screen |
Resistive type 17" touch screen |
| Panel ID |
Stainless |
| Storage |
| HDD |
2.5" IDE HDD drive bay x 1 (with anti-vibration mechanism) |
| Expansion |
| Mini-PCI |
1 x 32-bit Mini-PCI socket |
| PCMCIA |
PCMCIA Type I/II 32-bit CardBus slot x 1 (use the same place as CF, not simultaneously) |
| External I/O |
USB
|
USB 2.0 x 4 |
| COM |
DB-9 x 3, RS-232 x 2, RS-232/422/485 x 1 |
| LAN |
RJ-45 x 1 |
| KB/Mouse |
PS/2 Keyboard & Mouse x 1 |
| Audio |
Line-in, Line-out, and Mic-in |
| Ambient temp. |
Storage is DOM |
| Mechanical & Environmental |
Power Input
|
DC12V~24V |
| Relative Humidity |
10%~90%, non-condensing |
| Operating Temperature |
0~40℃ (fanless) |
| Relative Humidity |
10%~90%, non-condensing |

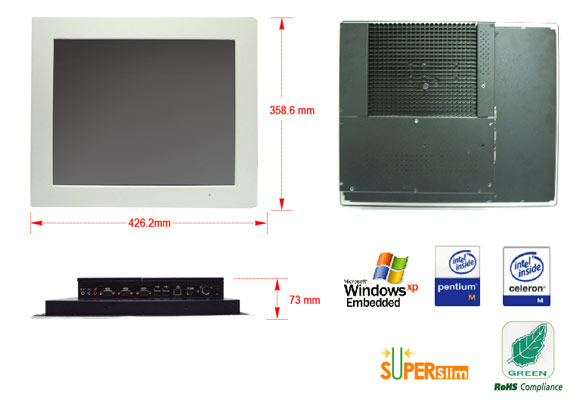

| Dimensions |
426.2 x 358.6 x 73 mm (8.1 kg) (with aluminum front bezel) |
* Specifications are subject to change without notice. |
