Plasma, LCD and Projection Display Engine

Wincomm WPE-680

The Wincomm WPE-680 Display Engine Box is the heart of the digital flat display.

To avoid the expensive video cards and the untidy computing cables, WPE-680 is the ideal engine to drive all kinds of LCD TV, HDTV, Plasma and Projection displays with 16:9 WVGA resolution and light-weight features.

The world's most reliabile Industrial Embedded Computer to drive large screen display.
Advanced Intel PIII (Tualatin) Socket370 platform.
Built-in ATi graphic controller with up to 16MB video memory.

The wincomm WPE-680 is suitable for:

PIDs (Public Information Display System)
FIDs (Flight Information Display System)
ATIDs (Air Traffic Information Display System)
Air-Terminal
Railway Stations
Exhibition
Shopping malls
Leisure centers
Trade centers
Convention centers
Universities, training centers
Companies
Public Buildings

Download PDF Brochure

Other Wincomm Products

Wincomm WPE-790

Specifications:

Model

SYSTEM

CPU

Chipset

Memory

BIOS

Audio

Watchdog Timer

Power Supply

Temperature

Humidity

Dimension

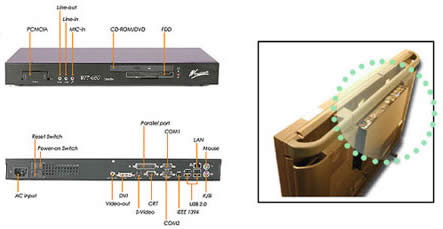

I/O

Drive Bay

Serial Port

Parallel Port

USB

KB/Mouse

PCMCIA

IEEE 1394

ETHERNET

Controller

Connector

Other function

DISPLAY

Controller

VBA Memory

Decoding Type

Interface

Resolution

WPE-680

Supports FC-PGA/FC-PGA2 socket 370 Intel PIII(Tualatin) up to 1.26GHz,
or VIA C3 processor.

VIA VT82C694T + VT82C686B

One SO-DIMM socket, Support system memory up to 512MB

AMI BIOS, 2MB Flash ROM

Support Line-in, Line-out, Mic-in

1-63 seconds, software programmable

AC Input: 100V-240V, 50-60Hz, 1.0A DC Output: 5V/12V-12V/3.3V,
120W Total, ATX Type

0-55 degrees C (32-131 degreesF)

0-90% relative humidity, non-condensing

430 x 202 x 44mm

One slim-type CD-ROM/DVD-ROM and one slim-type FDD for external devices
One 2.5" HDD for internal device

Two serial ports, COM1 and COM2 for RS-232

1 x SPP/EPP/ECP Parallel port

Four USB p0orts, USB version 2.0 compliant

1 X K/B and 1x mouse ports

Single type I/II/III cardbus slot

1 x IEEE 1394 port

Built in Realtek RTL8100B(L) Chipset

One RJ-45 IEEE 802.3u 10/100BASE-T

Wake on LAN (TBD)
Remote boot (PXE)
Schedule Boot Up

ATI Mobility M6-D AGP 4X graphic core

Internal 16MB video memory

MPEG II hardware acceleration

CRT/DVI/Video-out/S-Video display interfaces

Support CRT/DVI output for Plasma display
16:9 WVGA mode, including 848x480, 852x480, 1280x720, 1280x768, 1365x768, 1024x1024 (TBD)
