| System |
| CPU |
Socket 478 Intel Pentium 4 1.7G ~ 2.8G(without HT) |
| FSB |
400/533 MHz |
| Chipset |
Intel 845GV+ICH(82801DB) |
| Memory |
1 X DDR 2.5V PC200/266/333 DDR SDRAM (without ECC Funtion)
DIMM Module. Max. capacity - 1GB |
| BIOS |
Award BIOS Support ACPI Funtion |
| Audio |
ICH4 Built-in AC97 Audio, ALC650 6 Channel Codec |
| Cache |
128K/256K/512K Level 2 (CPU integrated) |
| VGA |
845GV built-in AGP 4X graphics |
| LAN |
Realtek 8100BL 10/100Base-Tx Fast Ethernet Controller |
| I/O |
Winbond W83627HF LPC I/O |
| IDE |
IDE 1 40-pin box header (Ultra DMA 33/66/100);IDE 2 44-pin header |
| WDT |
Watchdog Timer (256 steps, 0~255 sec/step) |
| Storage |
| HDD |
Internal drive bay for 3.5" IDE HDD x 1 |
| CD-ROM |
Optional drive bay for slim type CD/DVD-ROM x 1 |
| I/O |
| PCI Slot |
32-bit PCI slot x2 |
| External I/O |
| VGA |
DB-15 x 1 |
| Audio Jack |
Line-out and Mic-in |
| USB |
USB 2.0 x 2 |
| COM |
DB-9 x 1 |
| Parallel |
DB-25 x 1 |
| KB/Mouse |
PS/2 Keyboard x 1 and PS/2 Mouse x 1 |
| LAN |
RJ-45 x 1 |
| Mechanical & Environmental |
Power Input
|
AC 90~264V / 47~63Hz |
| Operating Temperature |
0~40℃ |
| Relative Humidity |
10%~90%, non-condensing |

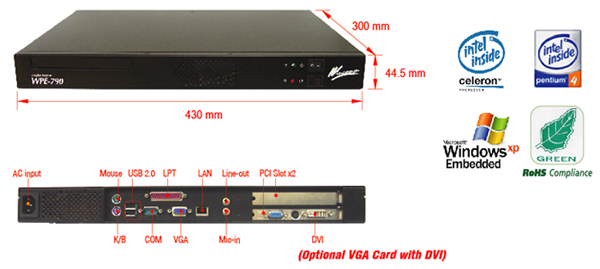

| Dimensions |
430 x 300 x 44.5 mm (5.2 kg) |
| Options |
Rack Mount
|
19 inch rack mounting kit |
* Specifications are subject to change without notice. |
