| System |
| CPU |
Supports Intel Pentium M, Celeron M Up to 2.26GHz |
| FSB |
400MHz / 533MHz |
| Chipset |
Intel 915GM chipset + ICH6M |
| BIOS |
Award BIOS, ACPI supported |
| Cache |
Built-in CPU L1 & L2 cache |
| VGA |
915GM Graphics Media Accelerator 900 |
| LAN |
Primary: ICH6M integrated 10/100 BaseT Ethernet
Secondary: Marvell 88E8053 PCI Express Gigabit Ethernet(option) |
| Memory |
One DDRII sockets supports up to 1GB DDR SDRAM
PC400/533 DDR SDRAM |
| I/O |
ICH6M, Winbond W83627HF chipset |
| IDE |
Built in ICH6M; One enhanced IDE channel supports 2 IDE
devices; supports UDMA33/66/100 |
| Serial ATA |
Supports 2 ports |
| Audio |
ICH6M integrated audio with AC97 codec; Onboard NS LM4950 amplifier |
| WDT |
Generates system reset; 256 levels |
| Storage |
| HDD |
Internal drive bay for 3.5" SATA HDD x 1 |
| CD-ROM |
Optional drive bay for slim type CD/DVD-ROM x 1 |
| Expansion |
| PCI Slot |
32-bit PCI slot x 1 or 16X PCI-express slot x 1 (not simultaneously)
Mini-PCI slot x 1 |

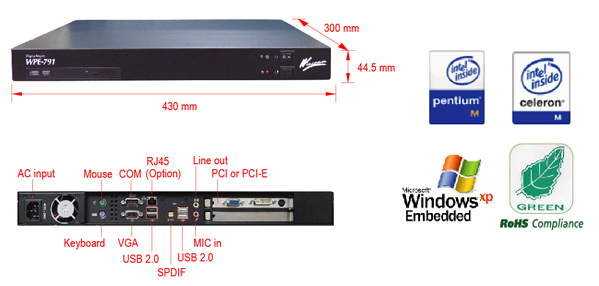

| External I/O |
| VGA |
DB-15 x 1 |
| Audio Jack |
RCA Jack 2x1 for Audio (Line-Out & Mic) |
| USB |
USB 2.0 x 4 |
| COM |
DB-9 x 1 |
| KB/Mouse |
PS/2 Connector x2 for keyboard/mouse |
| LAN |
J45 x1 for 10/100 BaseT Ethernet / x1 for Gigabit Ethernet (Option) |
| Others |
IEEE1394 (Option) & SPDIF/OUT |
| DVI |
VIA daughter B/O x1(option) |
| Mechanical & Environmental |
Power Input
|
AC 90~264V / 47~63Hz |
| Operating Temperature |
0~40℃ |
| Relative Humidity |
10%~90%, non-condensing |
| Dimensions |
430 x 300 x 44.5 mm (5.0 kg) |
| Options |
Rack Mount
|
19 inch rack mount kit |
*Specifications are subject to change without notice. |
