BenQ Projectors

High Brightness at a Great Price

The BenQ SP870 is the brightest most cost effective projector for digital signage, AV or other projection requirements. Light and compact with 5000 ANSI lumen brightness and 2000:1 contrast ratio, the BenQ SP870 offers superior viewing experience even in rooms with the lights on. With the complement of BenQ’s BrilliantColor, 3D color management, and UNISHAPE, an extraordinary picture is all you’ll get!

5000 ANSI Lumens

It doesn't matter where you are, with 5000 ANSI lumen high brightness, the SP870 will always give you the best clarity under the brightest lights! So, take advantage! Stay in control and enjoy perfect presentations and the best interactions with your audience!

XGA Native Resolution

The SP870 comes with XGA native resolution up to 1024 x 768. This brings you crisp and accurate images in your every presentation!

2000:1 High Contrast Ratio

The high 2000:1 contrast ratio means fine details and subtle color differences are rendered vividly even in darkly lit scenes.

BrilliantColor™ Performance

Thanks to BrilliantColor™ Technology, the BenQ SP870 DLP® projector delivers true-to-life images with enhanced secondary color brightness for your visual enjoyment!

Independent 3D Color Management

The built-in 3D Color management technology gives you the pleasure of adjusting the color intensity with the independent control of six colors' (R/G/B/C/M/Y) hue, gain, and saturation levels.

Need more information?

For any questions about how a Command Digital Signage System would be suitable for your business or to arrange a time for an on-site or on-line demonstration, please contact us on 1300 780 204 or through our enquiry form.

Command products and solutions are also available through your local AV and IT professionals.

  • Features
  • Specifications
  • Gallery

Features

Lamp Care - The SP870 can detect the bulb temperature automatically, making sure the temperature is cool enough before it allows the lamp to power up.

Presentation Timer - The preset on screen messages or audible beeps keeps you on the right track! Now, you'll be making eye contacts with your audience instead of your watch.

Quick Cooling - Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.

Wall Color Correction - BenQ has studied the world's most commonly used paint colors and developed easy-to-use wall color correction technology that will ensure you precise color performance on all surfaces.

Panel Key Lock - Use the control console or the remote to press the lock-key and be safe from accidentally pushing the wrong buttons. Now, you'll be safe from having your presentation disappear from view!

Auto Off - A smart auto off feature shuts the projector down when no input sources are detected after a preset interval. This feature not only conserves power, but also prevents possible overheating.

SP780 Specifications

Projection System DLP™ technology by Texas Instruments®
Native Resolution XGA (1024 x 768)
Brightness 5000 ANSI lumens
Contrast Ratio 2000:1 (Full on/Full off)
Color Full 16.7 million color palette
Lens F=2.4-2.7 , f=38.87-46.63mm
Aspect Ratio 4:3 Native, 16:9 Selectable
Throw Ratio 60”@2M (60”@6.6 feet)
Image Size (Diagonal) 40” to 300”
Zoom Ratio Manual Zoom, 1.15:1
Lamp 360W, 2000/3000 hours (Normal/Economic mode)
Panel WXGA LVDS DMDTM x 1
Keystone Vertical ± 25 Degree
Horizontal Frequency 31-93 kHz
Vertical Scan Rate 48-85 Hz
Computer Compatibility VGA(640 x480) to UXGA(1600 x 1200)
Dimensions(W x H x D) 375 x 115 x 277 mm (14.8 x 4.5 x 10.9 inch)
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

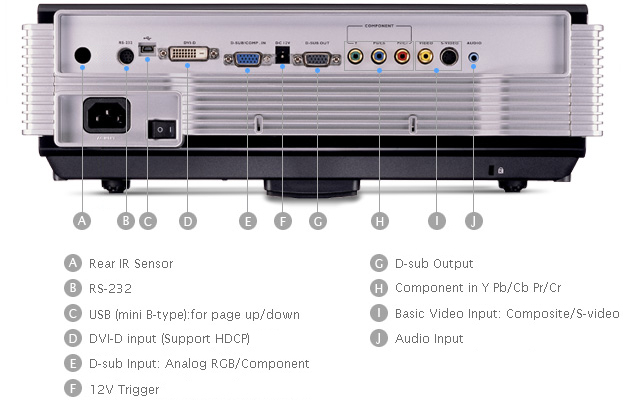

Input Terminals PC:
Analog RGB: D-sub 15 pin x 1
A/V
Component Video: RCA x 3
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
DVI-D (support HDCP) x 1Component Video: RCA x 3
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
DVI-D (support HDCP) x 1
Audio:
Stereo mini jack x 1
Output Terminals PC:
12V Trigger
D-sub (15 pin) X 1
Audio:
2 Watt Speaker x 2
Control Terminal Serial Connector : RS232 8 pin MINI DIN
USB Connector : USB x 1 (Type mini B)
Wired Remote jack x 1
Weight 4.9 kg (10.8 lbs)
Audible Noise 34/33 dB (Normal/Economic mode)
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption Max 510W
On-Screen Display Languages English/ French/ German/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese / Thai/ Polish
Picture Modes PC Input:
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
A/V Input :
Dynamic Mode
Standard Mode
Cinema Mode
User 1 Mode
User 2 Mode
Functions 3D Color Management
Quick Auto Search
Time Controller
Presentation Timer
Power On/Off Ring Tone
Panel Key Lock
Resolution Reminder
11 sets of Picture Mode
"Q?" Hot Key for FAQ
Freeze
Lamp Care
Wall Color Correction
Brilliant Color
Blank (ECO mode)
Quick Cooling
Auto Off
Security Password
My Screen
HDCP compatible
HDTV compatible 12V trigger High altitude mode
Accessories (Standard) User's manual
Quick Start Guide
Manual CD
Remote Control
Batteries for R/C
VGA Cable
VGA-DVI cable
PWR Cable
Accessories (Optional) Ceiling Mounting Kit
Spare Lamp Kit
Presentation Plus
