Wincomm Computers

Nexcom Computers

Fanless and Solid State Design Options

Nexcom is committed to being a trustworthy partner in building your digital signage infrastructure. To surpass customers' expectations, Nexcom makes the difference by utilising its decades of industrial computing experience, a highly talented R&D team, and by providing exceptional levels of customer service.

Our Nexcom computers provide us with a high level of reliability with their Fanless design.

These high performance computers are the ideal selection for installations where reliability is required.

Multiple Displays from one Player

Combined with Navori, the Nexcom computers can display to multiple screens with individual high definition playback on each screens.

Using hte latest in i3, i5 and i7 technology, Nexcom is the ideal solution for digital signage computing.

  • NDiS 125-L
  • NDiS 166
  • NDiS OPS-M50
  • Gallery

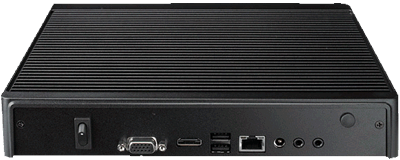

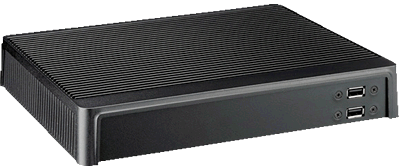

Nexcom DNiS 125-LNexcom NDiS 125-L

NDiS 125-L digital signage player is powered by 1.8GHz Intel® Atom™ D525 Dual Core processor. This advanced Intel® based technology boasts 50% better performance than the previous generation of Atom™ N270 CPU, with only a small increase in power consumption. Equipped with NVIDIA ION2 GPU, the NDiS 125-L Atom player is capable of supporting 1080P video playback. NDiS 125-L is housed in a maintenance-free fanless chassis which reduces moving parts and therefore increases component life span. Users thus benefit from a lower TCO (Total Cost of Ownership) yet industrial grade reliability.

Processor Intel® Atom™ Dual Core D525 1.8GHz CPU onboard
RAM 1 x SO-DIMM, DDR3 800, up to 4GB
Graphics NVIDIA ION2
HDD 80GB SATA II HDD
Expansion VGA, HDMI, 2 x USB, RJ45, 1 x Audio-out
I/O Interface USBx4, RS232, RS232.422.485, LANx2, VGA, DVI-D
Dimensions (W x H x D) 250 x 40 x 195 mm
Weight (Net) 4.5kg
Mounting Methods Desktop, Wall Mount

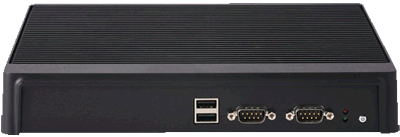

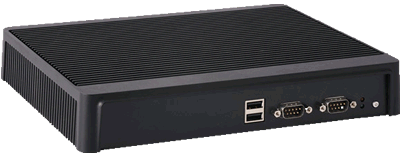

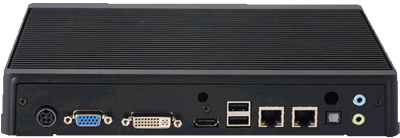

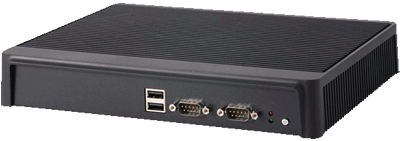

Nexcom NDiS 166Nexcom NDiS 166

NDiS 166 Sandy Bridge player is a powerful digital signage player which is built around the superb technology of Intel® Core™ i5/i7 processor series and QM67 integrated graphics controller. The fanless NDiS 166 1080P signage player is capable of offering impressive system performance and can easily support dual full-HD video. NDiS 166 is an advanced digital signage player which fully satisfies customer's expectation of dual display with 1080P video support that assures outstanding playback ability.

Processor 2nd generation Intel® Core™ Processor Family
RAM 2x DIMM, DDR3 1066/1333 MHz up to 8GB
Graphics Intel® Integrated Graphics
HDD 80GB SATA II HDD
Expansion 1 x Mini-PCIe for optional wireless LAN module, 1 x Mini-PCIe for optional TV tuner module
I/O Interface VGA, DVI, HDMI, 2 x USB, 2 x RJ45, 1 x SPDIF, 2 x Antenna hole for Wi-Fi and TV tuner
Dimensions (W x H x D) 250 x 40 x 194mm
Weight (Net) 5.0kg
Mounting Methods Desktop, Wall Mount
Special Features Watchdog

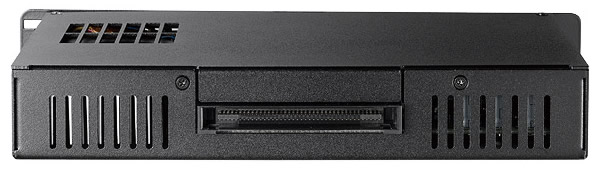

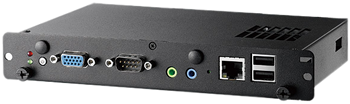

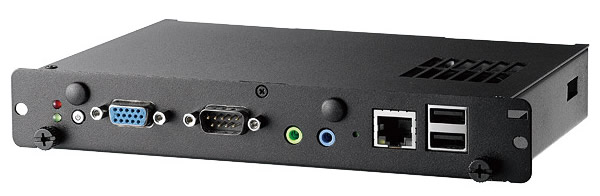

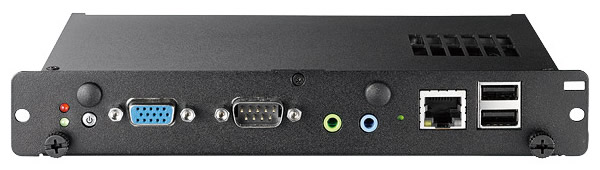

Nexcom NDiS 166Nexcom NDiS OPS-M50

NDiS OPS-M50 is specifically designed to be compliant with OPS (Open Pluggable Standard). NDiS OPS-M50 provides COM Express architecture slot with optional COM Express Type II module scalability, slide in 2.5" SATA Slim SSD for storage. NDiS OPS-M50 operates on the high performance Intel® Core™ i5-2515E Dual Core processor. The NDiS OPS-M50 is a powerful media player for digital signage application displaying high impact content in a compact size and perfect match with panel.

Main Features

Embedded Intel® Core™ i5-2515E Dual Core processor
Intel® HD integrated graphics 3000
Designed compliant with open pluggable standard
COM Express architecture, easy scalability
Slot-in integration, easy maintenance
Supports HDMI, DP, UART, and USB2.0 via JAE 80-pin connector
TV tuner/ WLAN support

Processor Onboard Intel® Core™ i5-2515E Dual Core processor
RAM 1 x 204 pin SO-DIMM socket, support DDR3 800/ 1066/ 1333MHz (Single channel) with un-buffered and non-ECC SDRAM up to 4GB
Graphics Intel® HD graphics 3000 with Intel dynamic video memory allocation
HDD 1 x 22pin SATA right angle connector for slide in 2.5" SATA slim SSD
Expansion 2 x Mini-PCIe for optional WLAN/ TV tuner module
Support wake on WLAN feature
I/O Interface Rear Standard connector type: JAE TX25 Plug Connector
Power input: 12V~19V
1 x TMDS / 1 x UART / 3 x USB Port
Audio: Line-out L/R
Control signals: power status / PS_ON / PB_DET / CEC / SYS_FAN
I/O Interface Rear 1 x Power status LED (Green)
1 x HDD status LED (Yellow)
1 x Power button
1 x Reset button
1 x DB9 for RS-232
2 x USB port
1 x Audio Line-in
1 x Audio Line-out
1 x VGA port (DB15)
1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet
2 x Antenna hole for Wi-Fi or TV tuner module
Dimensions (W x H x D) 200mm x 30mm x 119mm
Weight (Net) 5.0kg
Mounting Methods OPS - Open Pluggable Standard
