VGA Splitter with Audio

2/4/8 Port VGA Splitter with Audio

Commands 2, 4 and 8-port VGA Splitters with Audio allow you to display up to 8 VGA monitors and Stereo Speakers through one computer.

Ideal for use with Digital Signage Systems, AV installations, classrooms, multi-media centres, data centres, help desks and test bench faciliites, the VGA Splitter with Audio delivers both performance and value.

The video and audio signals can be broadcast over long distance up to 60 metres

The splitters can be daisy chained to provide support for additional displays.

Need more information?

For any questions about how a Command Digital Signage System would be suitable for your business or to arrange a time for an on-site or on-line demonstration, please contact us on 1300 780 204 or through our enquiry form.

Command products and solutions are also available through your local AV and IT professionals.

  • Features
  • Specifications
  • Gallery

Features

Duplicates and amplifies VGA signal and Audio line out to monitors from computers.

Supports LCD, LED, Plasma, Projectors and CRT displays.

Enhances video signals for long distance broadcast up to 60m.

Supports display resolution up to 2048 x 1536.

High Bandwidth: 450 MHz.

DDC/DDC2/DDC2B Plug & Play monitor support.

Supports stereo audio op / 2-CH Audio, bandwidth: 30 KHZ.

Cascadable via daisy chaining for additional displays.

Connector Input: HD 15/F (Female) & 3.5mm Audio jack x 1 set.

Connector Output: HD 15/F (Female) & 3.5mm Audio jack x 2/4/8 sets.

Specifications

Model No. VP-112A VP-114A VP-118A
Number Of monitors Controlled 2 monitors 4 monitors 8 monitors
LED indicator Power x 1
PC Connector port Video HDB-15 female X 1
Speaker Stereo speaker jack X 1
Monitor port Video HDB-15 female
X 2
HDB-15 female
X 4

HDB-15 female
X 8

Speaker Stereo speaker jacks X 2 Stereo speaker jacks X 4
Stereo speaker jacks X 8
Connection distance Up to 60 meter
Maximum bandwidth 450 MHz(Resolution: up to 2048 x 1536)
Signal type VGA, SVGA, XGA, SXGA, UXGA, Multi-sync, TFT-LCD
Power DC5V2A
Dimension( LXWXH cm) 14 x 8.5 x 4.5 14 x 8.5 x 4.5 21.5 x 8.5 x 4.5
Unit weight 350g 400g 615g

Select pictures to view

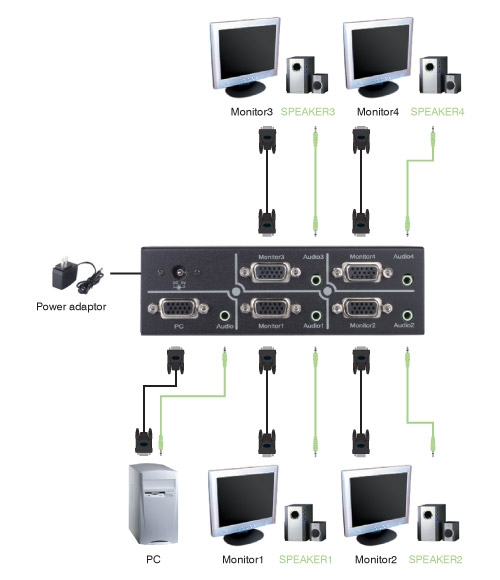

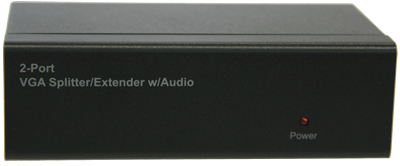

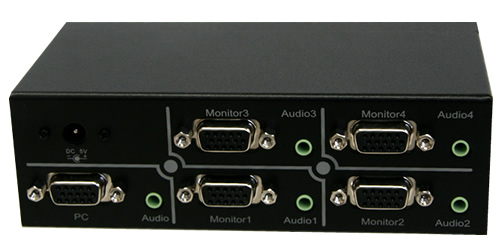

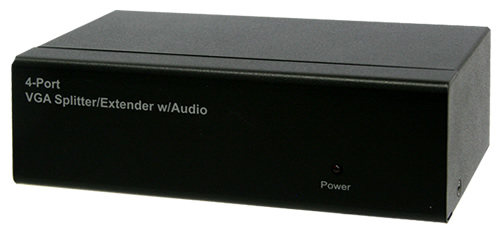

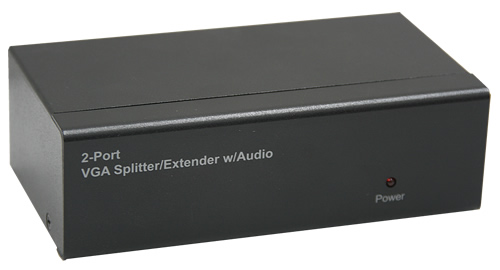

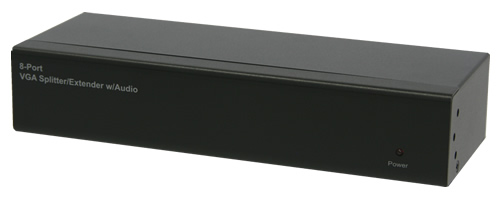

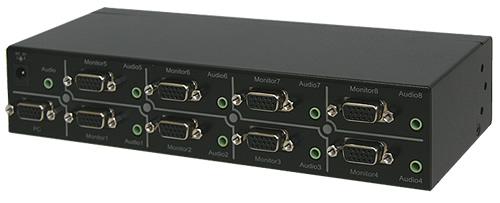

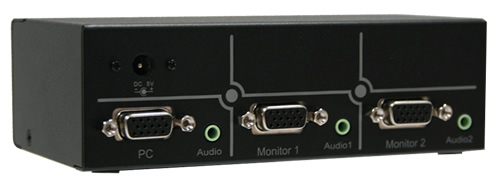

Video Splitter Example Configuration Video Splitter 2 Port VGA and Audio Video Splitter 2 Port VGA and Audio Video Splitter 4 Port VGA and Audio Video Splitter 4 Port VGA and Audio Video Splitter 8 Port VGA and Audio Video Splitter 8 Port VGA and Audio
