Intel Compute Stick
Navori
Digital Signage Software

The Second Generation of digital signage has arrived.

Advanced features include:
Basic to Enterprise Level Options
PC, Mac, Linux Admin
Easy to Use Interface
User Rights Control
Multi-Level Scheduling
High Performance Player
Screen Zoning

Digital Signage Success starts here.

Media Players

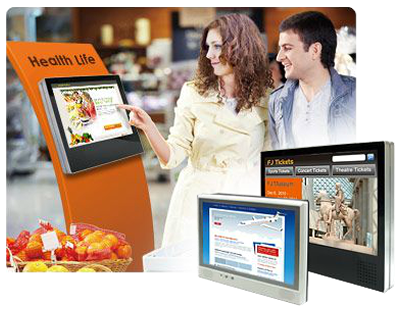

Touchscreens & Panel PCs

Extensive range of touchscreens and panel pcs

Commands range of products include:

All-In-One Media LCD Displays with built in media player and interactive touch screens ranging in size from 10" to 22"..

Panel PCs for commercial and industrial use with built-in computers ranging in size from 10" to 19".

Large Format Touch Screens with built-in computers ranging in size from 23" to 82".

All-In-One Small Format Touch Screens

The PAE series of touch screens are self-service terminal which integrates hardware and software to create an interactive environment such as product display for sale, and information display for multimedia.
The all-in-one network digital signage display are available in various sizes including 10"/ 15"/ 19"/ 22" available for selection.
The media files are on a local memory card with a built-in media player or the content can be sourced directly from a dweb server.
HTML and Flash are the primary supported file types.
The PAB1080PX Series are ideal for department stores, exhibitions, libraries, office buildings, airports, and other public places for advertising, presentations, training and other media applications.

Panel PC Touch Screens

The WLP series industrial panel PC includes full-line 10.4” to 19” LCD and touch panel integration. The WLP series support wide temperature fanless usage with stainless, aluminum or external heat sink rugged enclosure.
The rugged construction includes Lower Power and a true fanless thermal design.
The enclosures have a IP66 rated Water and Dust Proof front bezel.
The internals include a built-in HDD anti-vibration module.

Large Format Touch Screens

Project a professional image
Your large format LCD Touch Screen can be your first point of contact with your audience, and our large format touch screens are sure to leave a good first impression.
Our unique integrated touch screen solution allows for convenient set-up and enhances the user experience. Plus, the networking capabilities and built-in speakers will deliver the greater operational efficiency and impact you've come to expect from a quality product.
Integrated touch screen.
Unlike conventional large format screens, our screens have integrated a touch screen solution within range.
Simply plug it in and the LFD is ready to go with the infrared touch screen have a response time of 15 to 40ms,. These screens are some of the fastest on the market today and the enhanced sensitivity of the infrared touch screen makes it easy to operate.
The screens come with a 3mm protective LCD glass panel, so you can rest assured that your LCD will working for years to come.

Need more information?

For any questions about how a Command Digital Signage System would be suitable for your business or to arrange a time for an on-site or on-line demonstration, please contact us on 1300 780 204 or through our enquiry form.

Command products and solutions are also available through your local AV and IT professionals.

  • All-In-One (10"-22")
  • Panel PC (10"-19")
  • Large (23"-82")

All-In-One Touch ScreenAll-In-One (10"-22") Features

PAE101V.I.P PRO: Built-in 10.1" LCD display (resolution up to 1024 x 600), resistive type touch and stereo speakers (1W x 2).

PAE15V.I.P PRO: Built-in 15" LCD display (resolution up to 1024 x 768), resistive type touch and stereo speakers (5W x 2).

PAE17V.I.P PRO: Built-in 17" LCD display (resolution up to 1024 x 768), resistive type touch and stereo speakers (5W x 2).

PAE19V.I.P PRO: Built-in 19" LCD display (resolution up to 1280 x 800), resistive type touch and stereo speakers (5W x 2).

PAE15V.I.P PRO: Built-in 19" LCD display (resolution up to 1024 x 768), capacitive type touch and stereo speakers (5W x 2).

PAE15V.I.P PRO: Built-in 22" LCD display (resolution up to 1680 x 1050), capacitive type touch and stereo speakers (5W x 2).

Supports Touch Screen function.
Supports CF memory card.
Supports 2 USB ports.
Provides RJ-45 port for connecting to an Ethernet network.
Supports VGA out for connecting to external monitor or projector.
Supports Audio output for connecting to external speakers.
Main function as below (under Linux OS)
Web based content (W3C WEB Standard) management solution allows you to edit and apply layout design easily.
Supports shockwave flash (SWF) format.
Supports Java Script/ Applets.
USB Auto-Copy Function: Automatically copy the contents from Pen Driver to CF card.
Virtual Keyboard: The virtual keyboard will automatically appear when selecting the entry field.
Supports External USB Printer.

Panel PCPanel PCs

The range of panel pcs is extensive with many options. The following are a sub-set of available panel pcs.

Example Panel PC include:

10.4" LCD 800x600, Intel Atom N270 1.6GHz, Fanless, Resistive Touch

12" LCD 800x600, Intel Atom N270 1.6GHz, Fanless, Resistive Touch

15" LCD 1024x768, Intel Atom N270 1.6GHz, Fanless, Resistive Touch

17" LCD 1280x1024, Intel Atom N270 1.6GHz, Fanless, Resistive Touch

19" LCD 1280x1024, Intel Core Duo 2.16GHz, Fanless, Resistive/Cap./SAW/IR/PCT Touch

Large Format Touch Screens (23"-82")

High quality Professional Touch Screens..

SPECIFICATIONS

Size 23" 32" 40" 46" 65" 70" 82"
Resolution 1920 x 1080 1366 x 768 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Dimensions (WxHxD mm) 557.5 x 339 x 79.2 787 x 482 x 116 973.2 x 584.4 x 128.1 1104.2 x 658.4 x 134.3 1554 x 924 x 138 1688 x 989 x 138 1915 x 1125 x 618
Display Area (WxH mm) 509 x 266 697 x 392 885 x 498 1018 x 572 1428 x 803 1549 x 871 1805 x 1015
Weight 8.38kg 20.8kg 27.2kg 31.3kg 70kg 122kg 140kg
Bezel Width 22.8/25.1mm 40mm 40mm 40mm 54mm 55mm 55mm
Inputs VGA VGA VGA VGA VGA VGA VGA
External Control RS232 RS232, RJ45 RS232, RJ45 RS232, RJ45 RS232, RJ45 RS232 RS232
Built-in Computer Internal Internal Internal Internal Internal Internal Internal
Power Consumption Max 120W/h Max 220W/h Max 220W/h Max 320W/h Max 470W/h Max 879W/h Max 1000W/h

Specifications are subject to change.

Advanced Commercial Grade LCD Displays

Ideal for 24 hour operation in Digital Signage or other display requirements.

SPECIFICATIONS

Size 40" 46" 55" 70" 82"
Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Dimensions (WxHxD mm) 932 x 548 x 130 1068 x 624 130 1263.8 x 741.7 x 136.3 1668 x 989 x 138 1915 x 1126 x 143
Display Area (WxH mm) 885.6 x 498.15 1018.08 x 572.67 1209.6 x 680.4 1549.4 x 871.56 1805.76 x 1015.74
Weight 17kg 21.2kg 35.5kg 81.7kg 119kg
Bezel Width 20mm 20mm 22.5 (top, sides)
30 (bottom)
55mm 55mm
Inputs VGA, DVI-D, Display Port, HDMI, CVBS, Component VGA, DVI-D, Display Port, HDMI, CVBS, Component VGA, DVI-D, Display Port, HDMI, CVBS, Component VGA, DVI-D, Display Port, HDMI, CVBS, Component VGA, DVI-D, Display Port, HDMI, CVBS, Component
External Control RS232, RJ45 RS232, RJ45 RS232, RJ45 RS232 RS232
Built-in Computer Optional Optional Optional Optional Optional
Power Consumption Max 220W/h Max 250W/h Max 380W/h Max 720W/h Max 1000W/h

Specifications are subject to change.
