 APPLE
MAC MINI
The ideal size computer for computing and a streaming-media
client.
Everything you need — and not an ounce more —
to enjoy digital photos, music and movies. Get a fast G4 processor,
slot-loading CD-RW/DVD-ROM drive and a reliable operating
system in a body just 6.5-inches square and 2-inches tall.
Technical Specifications
Processor and memory
1.25GHz or 1.42GHz PowerPC G4 processor with Velocity Engine
512K on-chip level 2 cache at full processor speed
167MHz system bus
256MB of PC2700 (333MHz) DDR SDRAM, expandable to up to 1GB5
Storage
40 or 80GB Ultra ATA hard disk drive1
One of the following optical drives:
Slot-loading Combo drive (DVD-ROM/CD-RW): reads DVDs at up
to 8x speed, writes CD-R discs at up to 24x speed, writes
CD-RW discs at up to 16x speed, reads CDs at up to 24x speed
Optional SuperDrive (DVD±RW/CD-RW): writes DVD-R discs
at up to 4x speed, writes DVD-RW discs at up to 2x speed,
writes DVD+R discs at up to 4x speed, writes DVD+RW discs
at up to 2.4x speed, reads DVDs at up to 8x speed, writes
CD-R discs at up to 16x speed, writes CD-RW discs at up to
8x speed, reads CDs at up to 24x speed
Audio
Built-in speaker
Headphone/Audio Line-out jack
Graphics support
ATI Radeon 9200 graphics processor with AGP 4X support
32MB of dedicated Double Data Rate (DDR) video memory
Video
DVI video output for digital resolutions up to 1920 x 1200
pixels; supports 20-inch Apple Cinema display and 23-inch
Apple Cinema HD display; supports coherent digital displays
up to 154MHz; supports non-coherent digital displays up to
135MHz
VGA video output (using included adapter) to support analog
resolutions up to 1920 x 1080 pixels
S-video and composite video output to connect directly to
a TV or projector (requires Apple DVI to Video Adapter, sold
separately)

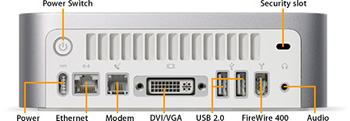

Peripheral connections
One FireWire 400 port; 8 watts
Two USB 2.0 ports (up to 480 Mbps) on computer
Communications
Built-in 56K V.92 modem (RJ-11 connector)2
Built-in 10/100BASE-T Ethernet (RJ-45 connector)
Optional internal 54-Mbps AirPort Extreme Card (based on IEEE
802.11g standard; Wi-Fi Certified for 802.11g and 802.11b
interoperability)3
Optional internal Bluetooth module
Electrical and environmental requirements
Meets ENERGY STAR requirements
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 85W
Operating temperature: 10° to 35° C (50° to 95°
F)
Storage temperature: -40° to 47° C (-40° to 116°
F)
Relative humidity: 5% to 95% noncondensing
Maximum altitude: 3,048m (10,000 feet)
Size and weight
Height: 5.08 cm (2 inches)
Width: 16.51 cm (6.5 inches)
Depth: 16.51 cm (6.5 inches)
Weight: 1.32 kg (2.9 pounds)4
