AOpen
Digital Engine DE-945FL Mini Computers
 AOpen Digital Engine DE-945FL is a complete solution for Digital Signage, KIOSK, POS, Thin Client, Projector PC, Media Player, and Vehicle PC. AOpen DE-945FL is a compact system of 1.25L with Intel 945GM Express Chipset supporting Intel socket M Core 2 Duo processors and 64bit operation systems.
Features:
- Reliable Design
- MTBF: 40,000hrs
- Operating Temperature: 5 ºC ~ 40 ºC (41ºF~104ºF)
- Relative Humidity: 90% RH (40ºC non-condensing)
- Operating Vibration: 0.5Grms, random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis
- Operating Shock: 8G, half sine, 11ms duration
- Socket M, Support Intel Core Solo and Celeron M CPU (CPU Power Consumption ≤ 27W)
- Intel 945GM + ICH7M
- Supports Dual Channel SO-DIMM DDRII 533/667 x 2, up to 4GB
- Small to be everywhere, 166mm x 157mm x 48mm, 1,25L
- Silent – Low Noise and low power consumption
- Supports one 2.5” S-ATA HDD or Flash Disk
- On-board Gigabit Ethernet, USB 2.0 Port, RS232 Port, IEEE 1394 Port
Reliable to be Robotic
The AOpen DE-945FL had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. These advantages ensure the durability and long time operation of the DE-945FL.
Silent & Energy saving to protect our environment
While operative, AOpen DE-945FL merely generates 22db of noise because of MoDT (Mobile on Desktop Technology). AOpen DE-945FL adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
Performance to make things happen
For different applications, the DE-945FL build with Intel 945GM Express chipset provides 667/533MHz FSB and up to 4GB DDRII RAM. DE-945 FL supports Intel socket M Core 2 Duo, Core Solo, Celeron M processors and is ready for 64bit Windows VISTA Premium. The S-Video, Y/Pb/Pr composite and DVI outputs for high quality video output 5.1 channels features make it a great multimedia solution. Intel Clear Video Technology enables DE-945 FL to play high-definition 1080i video and provide customers with a HD Audio ALC888 experience.
Small to be everywhere
For convenient deployment, AOpen provides several kinds of optional brackets. The AOpen L Type holder is used to install and secure the DE-945FL easily; the Vertical Stand bracket ist used for vertical installation. The AOpen DE-945 FL has a compact size of 1.25L, which is small enough to be installed everywhere. Therefore, the DE-945 FL can be installed in many tiny places and small rooms - it gives you a whole lot more opportunities.
Options |
| Model Name |
L Type Holder |
Vertical Stand |
| Photo |
|
|
|
|
| Form Factor |
AOpen Proprietory Dimension |
AOpen Proprietory Dimension |
| Application |
To secure Digital Engine horizontally or vertically on any surface |
To secure Digital Engine vertically on any surface |
| Note |
Bundle with DE-945FL |
Option Item |
Product Range :
AOpen DE-945CD
AOpen DE-945FL
AOpen DE-945FX
Specification |
| Model |
DE-945FL |
| Dimension: |
166(W)x48(H)x157(D)mm |
| Volume: |
1.25L |
| Weight(Kg/Pound) : |
1.16kg (N.W.) |
| Housing Material: |
SECC t=0.8mm |
| CPU: |
Socket M
Support Intel Core Solo and Celeron M 4xx CPU
FSB 667/533MHz
Note: CPU Power Consumption less than 27 Watts |
| Chipset: |
Intel 945GM+ICH7M Chipset |
| Memory: |
Dual Channel Mode
SO-DIMM DDRII x 2
SO-DIMM DDRII 533/667
Max memory size: 4GB*
Note: * Max hardware structure. System will not detect to 4GB due to chipset limitation. |
| Graphics: |
Integrated VGA Engine in 945GM chipset (Intel GMA 950)
Connector: DVI-i x 1, S-Video Out x 1, D-Sub x 1 (via Y Cable) |
| Expansion Slot: |
Mini PCI Slot x 1 |
| Audio: |
Realtek ALC888 HD Audio CODEC on-board
5.1 Channel |
| LAN: |
Integrated Intel Gigabit LAN Controller |
| USB: |
Integrated in chipset |
| Chassis: |
None
2.5" SATA II HDD Bay x 1 |

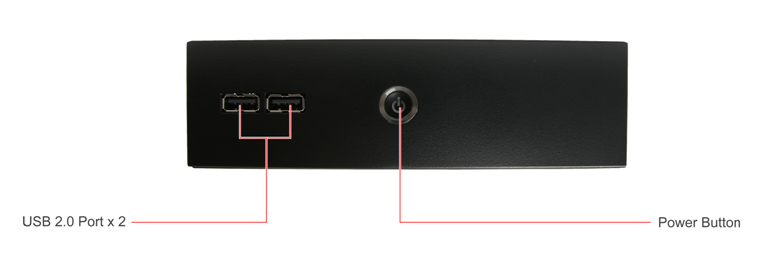

| Front Panel IO: |
Power Button x 1
USB 2.0 Port x 2
Power indicator x 1
HDD indicator x 1 |

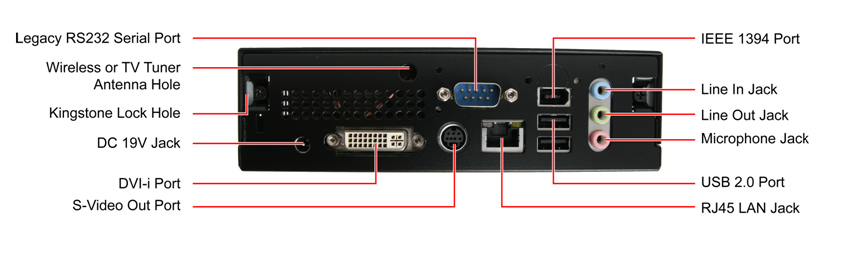

| Rear Panel IO: |
DC 19V Jack x 1
DVI-i Port x 1
S-Video Out Port x 1
USB 2.0 Port x 2
IEEE 1394 Port x 1
RS232 Serial Port x 1
RJ45 LAN Jack x 1
Line-In Jack* x 1
Line-Out Jack* x 1
Microphone Jack* x 1
Note:* Switch by Utility Software |
| Security: |
User's Password Protection of BIOS and Security Lock of OS (TPM v1.2)
Kingston Lock Hole x 1 |
| CPU Thermal: |
AOpen Proprietary Fan Less Thermal Module |
| Adapter: |
65W (19V, 3.5A) AC Adapter |
| Environment: |
MTBF: 40,000 hrs
Operating Temperature: 5 ~ 40°C(41 ~ 104°F)
Relative Humidity: 90% RH (40°C non-Condensing)
Operating Vibration: 0.5Grms, Random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis
Operating Shock: 8G, half sine, 11ms duration, X,Y,Z 3Axes, 6Direction, 3 shocks/direction |
| Accessory: |
65W Power Adapter x 1
Power Cord x 1 (Option)
DVI to DVI & D-Sub Y Cable x 1
AOpen Proprietary "L" Bracket x 1
Utilities & Drivers CD x 1
Assembly Guide x 1 |
| Certification: |
CE, FCC, UL |
| Support OS: |
Windows Vista Home Ultimate / Premium / Basic, Windows XP |
|
