iShow
- LightBox

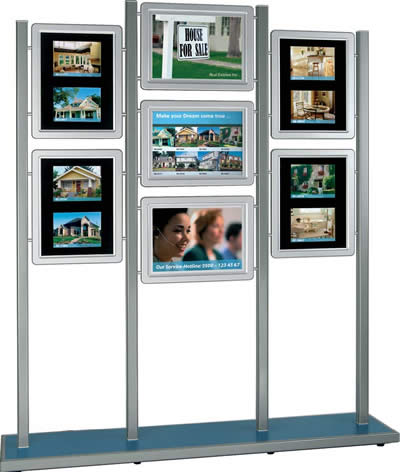

The LightBox is available as either a static lightbox or dynamic models with built-in LCD displays incorporating intergrated CF orHDD media players.
The iShow lightBox is available in various models, portrait or landscape, and
sizes 10" , 15" and 17".

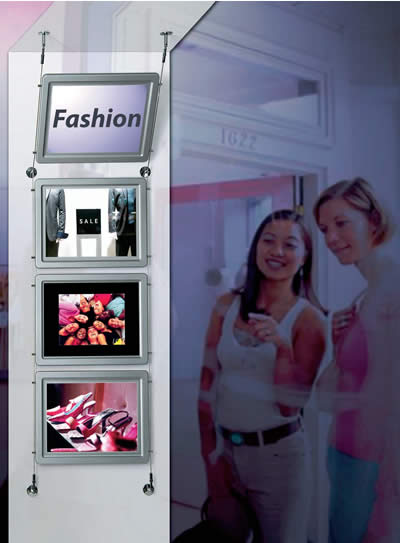

These great units are designed to be hung from wire supports
or mounted between wire or tracks.
The wire or tracks provides the low-voltage units with power, providing
a clean and compact look.
Ideal for retail stores, corporate entrances, real estate agencies
and travel agencies, these units can run individual presentations,
bringing your display to life.
Other iShow products
iShow - Square
iShow - LightBox
iShow - Tower
iPlay - Media Player
Specifications
| Model |
SLA10 |
SLA15 |
SLA17 |
SLA17w (wide screen) |
| Panel Size |
10.4" x 2 |
15" |
17" |
17" |
| Aspect Ratio |
4:3 |
4:3 |
4:3 |
16:9 |
| Pixel Pitch |
0.264 x 0.264 |
0.297 x 0.297 |
0.264 x 0.264 |
0.289 x 0.289 |
| Max. Resolution |
800 x 600 |
1024 x 768 |
1280 x 1024 |
1280 x 768 |
| Color |
262K |
16.7M |
262 K |
16.7M |
| Contrast |
500:1 |
400:1 |
450 : 1 |
400:1 |
| Brightness |
400 |
450 |
450 |
450 |
| Response Time (Tr/Tf) (ms) |
10/25 |
10/15 |
4 / 12 |
15 / 12 |
| View Angle |
100° / 120° |
170° / 170° |
140° / 140° |
170° / 170° |
| Video Sytem |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
| Speaker |
No |
2W x 2 |
2W x 2 |
2W x 2 |
| Power Consumption |
~60W |
~ 60W |
~60W |
~ 60W |
| Input |
NONE |
USB 2.0 |
USB 2.0 |
USB 2.0 |
| Audio Output |
None |
Yes |
Yes |
Yes |
| Storage Device |
CF type I/II |
CF type I/II and 2.5"HDD(optional) |
CF type I/II and 2.5"HDD(optional) |
CF type I/II and 2.5"HDD(optional) |
| Remote Control |
Yes |
Yes |
Yes |
Yes |
| OSD |
Yes |
Yes |
Yes |
Yes |
| Function Keys |
Yes |
Yes |
Yes |
Yes |
| CCD(Light Sensor) |
Yes |
Yes |
Yes |
Yes |
| CF Security |
Yes |
Yes |
Yes |
Yes |
| Operating Temperature |
0°C~60°C |
0°C~60°C |
0°C~60°C |
0°C~60°C |
| Dimensions (W x H x D) mm |
400 x 520 x 56 |
400 x 520 x 56 |
400 x 520 x 56 |
400 x 520 x 56 |
| Net Weight (KG) |
4 |
4.5 |
4.7 |
4.7 |
|
