  iShow
- Square
The iShow Square Media Signage is an LCD display system
using CompactFlash memory cards or built in HDD ( HDD optional on the SQA15 , 20 and 30 models only) to update the LCD display
with JPEG, MPEG and MP3 files.
The iShow Media Signage is available in various models and
sizes from 5" to 30".

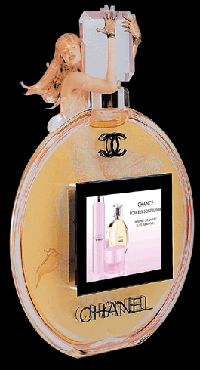

The iShow Square is designed to be incorporated in your POP/POS
displays.
Available in 5" , 10.4", 15" ,20"and 30", the iShow Square
brings your displays to life.
Ideal for countertop and point of sale displays.
Features:
Hi-bright wide-view-angle LCD display
Compact, rugged metal cabinet, AR tempered glass
Playback formats:
Photo: JPEG with Music Slide Show function
Video: MPEG1, MPEG2 (up to 8Mb/sec VBR)
Audio: MP3
Other iShow products
iShow - LightBox
iShow - Tower
iPlay - Media Player
Related Products:
Sothink - Content creation software
Adobe - Content creation software
Eyzone - CF LCD's
InfoVu - All in one Digital Signage packages
Media Players
LCD's
Specifications
| Model |
SQA05 |
SQA07 |
SQA10 |
SQA15 |
SQA20 |
SQA30 |
| Panel Size |
5" |
7" |
10" |
15" |
20" |
30" |
| Aspect Ratio |
4:3 |
16:9 |
4:3 |
4:3 |
4:3 |
16:9 |
| Pixel Pitch |
0.106 x0.318 |
0.107 x 0.370 |
0.264 x 0.264 |
0.297 x 0.297 |
0.51 x 0.51 | 0.503 x 0.503 |
| Max. Resolution |
320 x 240 |
480 x 234 |
800 x 600 |
1024 x 768 |
800 x 600 | 1280 x 768 |
| Colour |
True Colour |
True Colour |
262k |
16.7m |
16.7m |
16.7m |
| Contrast |
300:1 |
400:1 |
500:1 |
400:1 |
500:1 |
600:1 |
| Brightness |
450 |
350 |
400 |
450 |
500 |
600 |
| Response Time (Tr/Tf) |
10/40 ms |
5/25 ms |
10/25 ms |
10/15 ms |
6/16 ms |
16 ms |
| View Angle |
40° / 90° |
90° / 120° |
100° / 120° |
170° / 170°
|
160° / 160°
| 170° / 170°
|
| Video System |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
| Speaker |
2W |
2W |
2W x 2 Stereo |
5W x 2 Stereo |
5W x 2 Stereo |
5W x 2 Stereo
|
| Power Consumption |
~40W
|
~40W |
~40W |
~50W |
~60W |
~200W |
| Input |
USB 2.0 /A
|
USB 2.0 /B |
None |
USB 2.0 /B |
USB 2.0 /B | USB 2.0 /B |
| Audio Output |
None |
None |
Yes |
Yes |
Yes |
Yes |
| Storage Device |
CF Type I/II |
CF Type I/II |
CF Type I/II |
CF type I/II & 2.5" HDD
|
CF type I/II & 2.5" HDD |
CF type I/II & 2.5" HDD |
| Remote Control |
Yes |
Yes |
Yes |
Yes |
Yes | Yes |
| OSD |
Yes |
Yes |
Yes |
Yes |
Yes | Yes |
| Function Keys |
Yes |
Yes |
Yes |
Yes |
Yes | Yes |
| Vesa Mount |
75mm |
75mm |
75mm |
75 / 100mm |
75 / 100mm | 75 / 100mm |
| CCD(Light Sensor) |
None |
None |
Yes |
Yes |
Yes | Yes |
| CF Security |
None |
None |
Yes |
Yes |
Yes |
Yes |
| Operating Temperature |
0°C ~ 60°C
|
0°C ~ 60°C |
0°C ~ 60°C |
0°C ~ 60°C |
0°C ~ 60°C | 0°C ~ 60°C |
| Humidity |
5% ~ 95%
|
5% ~ 95% |
5% ~ 95% |
5% ~ 95% |
5% ~ 95% |
5% ~ 95% |
Dimensions
(W x H x D) mm |
150 x 106 x 45 |
200 x 118.5 x 46 |
261 x 213 x 44 |
361 x 293 x 52
|
480 x 383 x 58
|
726 x 470 x 93.5
|
| Net Weight (KG) |
1.5 |
1.2 |
2 |
5.7 |
10.4 |
30 |
|
